What is Spanning Tree Root Guard?

Short answer: Root Guard prevents a port from becoming the path toward a newly advertised root bridge. When a superior BPDU arrives, the switch blocks the port in root-inconsistent state for the affected STP instance while continuing to listen for BPDUs.

Unlike BPDU Guard, it does not treat every BPDU as a violation and it does not normally err-disable the physical interface. The goal is specific: keep the root bridge where the network design says it belongs.

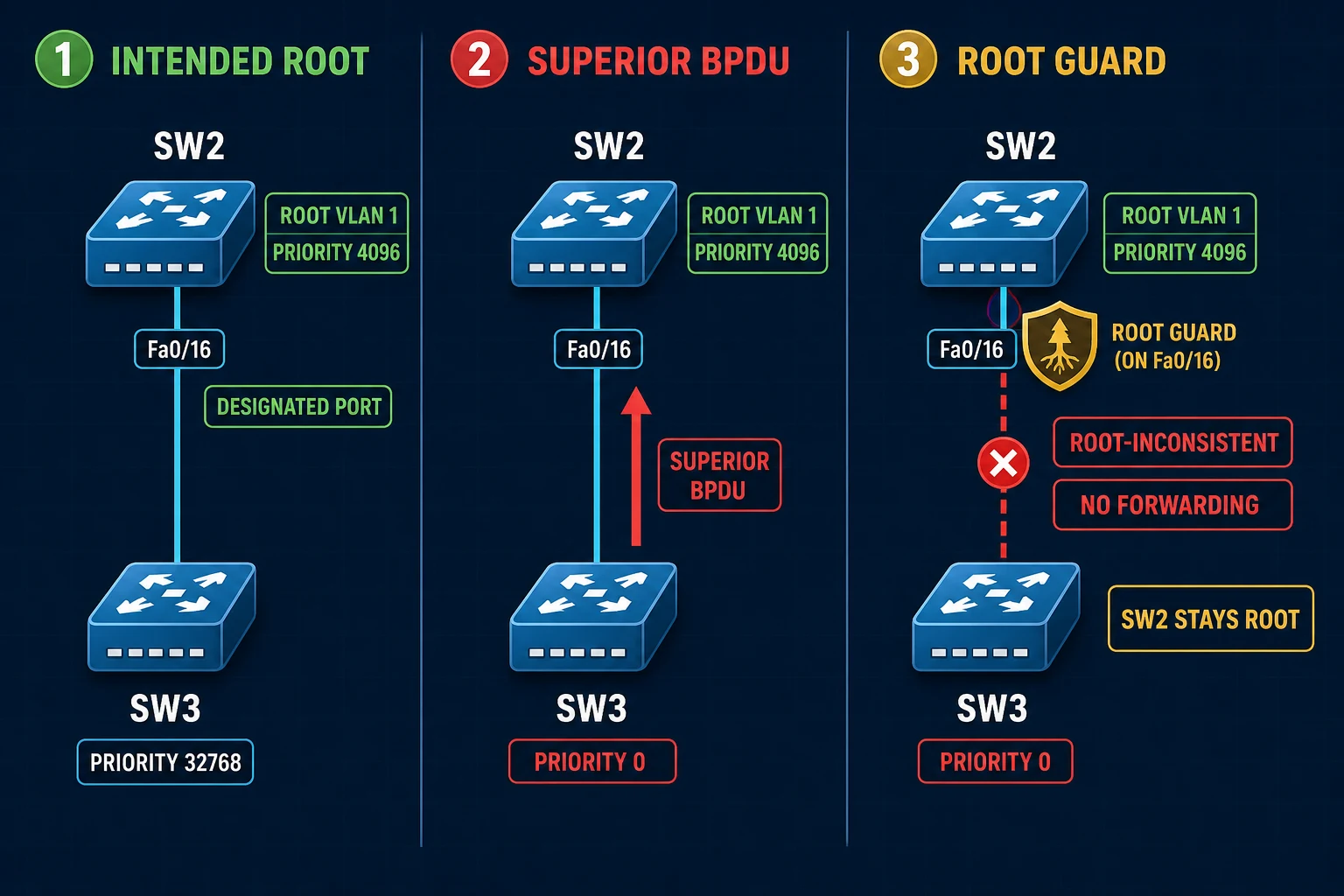

Three-stage Root Guard behavior showing SW2 as intended root, SW3 sending a superior BPDU after its priority changes to zero, and SW2 FastEthernet0/16 entering root-inconsistent blocking while SW2 remains root — A superior BPDU is still received and evaluated, but Root Guard prevents it from changing the intended root direction. Original educational diagram by Networking Essentials.

How Root Guard processes a superior BPDU

SW2 is the intended root bridge for VLAN 1, so its downstream-facing port is designated.
SW3 advertises a lower, superior bridge ID toward SW2.
SW2 receives and compares the BPDU normally.
Root Guard prevents Fa0/16 from becoming a root port and places it into root-inconsistent blocking for VLAN 1.
When superior BPDUs stop and their information ages out, the port automatically returns through normal STP state transitions.

Root Guard is directional. Put it on the port from which superior root information must never be accepted—not on an uplink that should legitimately lead toward the root bridge.

Root Guard lab topology

In this corrected lab, SW2 is the intended root for VLAN 1 and protects its Fa0/16 link facing SW3. SW3 initially has a worse bridge priority. We then lower SW3's priority to 0 to generate a superior BPDU and prove that SW2 enforces the boundary.

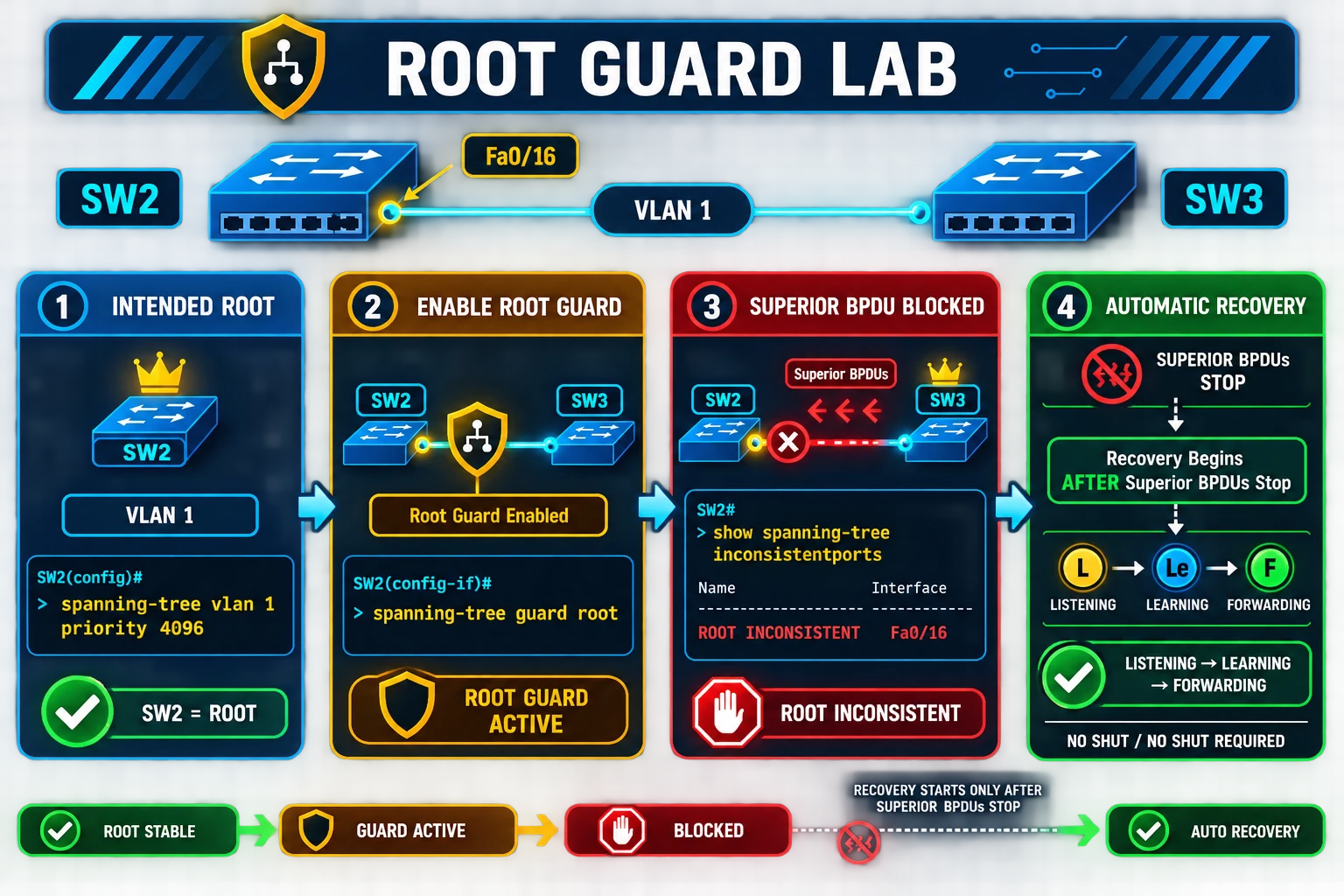

Root Guard lab between SW2 FastEthernet0/16 and SW3 showing intended root configuration, spanning-tree guard root command, root-inconsistent verification, and automatic recovery after superior BPDUs stop — Configuration, detection, verification, and recovery form one Root Guard workflow. No shutdown and no shutdown cycle is required for recovery. Original educational diagram by Networking Essentials.

1. Configure the intended root bridge

Give SW2 a better VLAN 1 priority than the normal default. In production, plan the primary and secondary roots rather than selecting values ad hoc.

SW2# configure terminal
SW2(config)# spanning-tree vlan 1 priority 4096
SW2(config)# end

Verify the local bridge ID and the root information before applying a guard:

SW2# show spanning-tree vlan 1

2. Enable Root Guard on the downstream port

SW2# configure terminal
SW2(config)# interface FastEthernet0/16
SW2(config-if)# spanning-tree guard root
SW2(config-if)# end

A representative platform notification is:

%SPANTREE-2-ROOTGUARD_CONFIG_CHANGE: Root guard enabled on port FastEthernet0/16.

Placement rule: this is the SW2 port facing a downstream switch that must not become root. It is not an endpoint PortFast control and does not require PortFast.

3. Test with a superior BPDU

In a maintenance lab, enable event debugging on SW2 and change SW3 to the lowest configurable bridge priority:

SW2# debug spanning-tree events

SW3# configure terminal
SW3(config)# spanning-tree vlan 1 priority 0
SW3(config)# end

SW3's bridge ID is now superior. SW2 should log that Root Guard blocked the protected port instead of accepting SW3 as the root direction:

STP: VLAN0001 heard root 1-000f.34ca.1000 on Fa0/16
     supersedes 4097-0019.569d.5700
%SPANTREE-2-ROOTGUARD_BLOCK: Root guard blocking port FastEthernet0/16 on VLAN0001.

Message format and bridge IDs vary by platform and lab. Disable debugging after the test:

SW2# undebug all

4. Verify the root-inconsistent port

SW2# show spanning-tree inconsistentports

Name                 Interface                Inconsistency
-------------------- ------------------------ ------------------
VLAN0001             FastEthernet0/16         Root Inconsistent

Number of inconsistent ports (segments) in the system : 1

Also inspect the VLAN and interface detail so you can confirm the root ID, port role, state, guard setting, and last topology change:

SW2# show spanning-tree vlan 1
SW2# show spanning-tree interface FastEthernet0/16 detail
SW2# show running-config interface FastEthernet0/16

5. Automatic Root Guard recovery

Restore SW3 to a bridge priority that no longer advertises a superior root:

SW3# configure terminal
SW3(config)# spanning-tree vlan 1 priority 32768
SW3(config)# end

After superior BPDUs stop and the stored information expires, SW2 removes the root inconsistency automatically. The port then follows normal STP convergence before forwarding.

No manual bounce is required. Unlike a BPDU Guard err-disabled interface, a Root Guard inconsistency does not normally require shutdown and no shutdown.

Where to deploy Root Guard

Core or distribution boundary

Use it on designated ports that point toward access-layer switches when the root must remain in the core or distribution layer.

Partner or unmanaged segment

Protect a boundary where connected bridging equipment must never influence your root election.

Not on a legitimate root path

Do not enable it on a port that is expected to become a root port; a valid superior BPDU would block that path.

Map every VLAN and instance

Root Guard can block the affected spanning-tree instance. Validate per-VLAN or MST behavior on the deployed platform.

Root Guard vs other STP protection features

Feature	Trigger	Response	Typical placement
Root Guard	Superior BPDU	Root-inconsistent blocking; automatic recovery	Downstream-facing designated port
BPDU Guard	Any BPDU on a protected edge port	Err-disables the interface	PortFast endpoint-facing access port
BPDU Filter	Configuration-driven	Suppresses BPDUs; exact behavior differs globally and per interface	Specialized, tightly controlled use
Loop Guard	Expected BPDUs stop arriving	Loop-inconsistent blocking	Non-designated point-to-point links at risk of unidirectional failure

Choose by failure condition. Root Guard stops an unexpected root direction; BPDU Guard protects an edge; BPDU Filter suppresses control traffic; Loop Guard protects against missing BPDUs on a link that should keep receiving them.

Complete SW2 and SW3 example configurations

SW2 — intended root and protected boundary

hostname SW2
!
spanning-tree vlan 1 priority 4096
!
interface FastEthernet0/16
 spanning-tree guard root
!
end

SW3 — superior-BPDU test configuration

hostname SW3
!
spanning-tree vlan 1 priority 0
!
end

Lab only: changing a live switch's root priority can reconverge the Layer 2 topology. Perform the superior-BPDU test only in an isolated lab or an approved maintenance window.
