STP Port States Explained: Blocking to Forwarding
Understand all five classic Spanning Tree port states—disabled, blocking, listening, learning and forwarding—what each port does, how long transitions take and how RSTP differs.
Spanning Tree Protocol Series
Follow these lessons in order to move from Layer 2 loop prevention through edge-port protection to Rapid PVST+ configuration.
In This Lesson
Read STP state as a timeline of what the port is allowed to do. Connect BPDU processing, MAC learning, forwarding, timers, and RSTP differences.

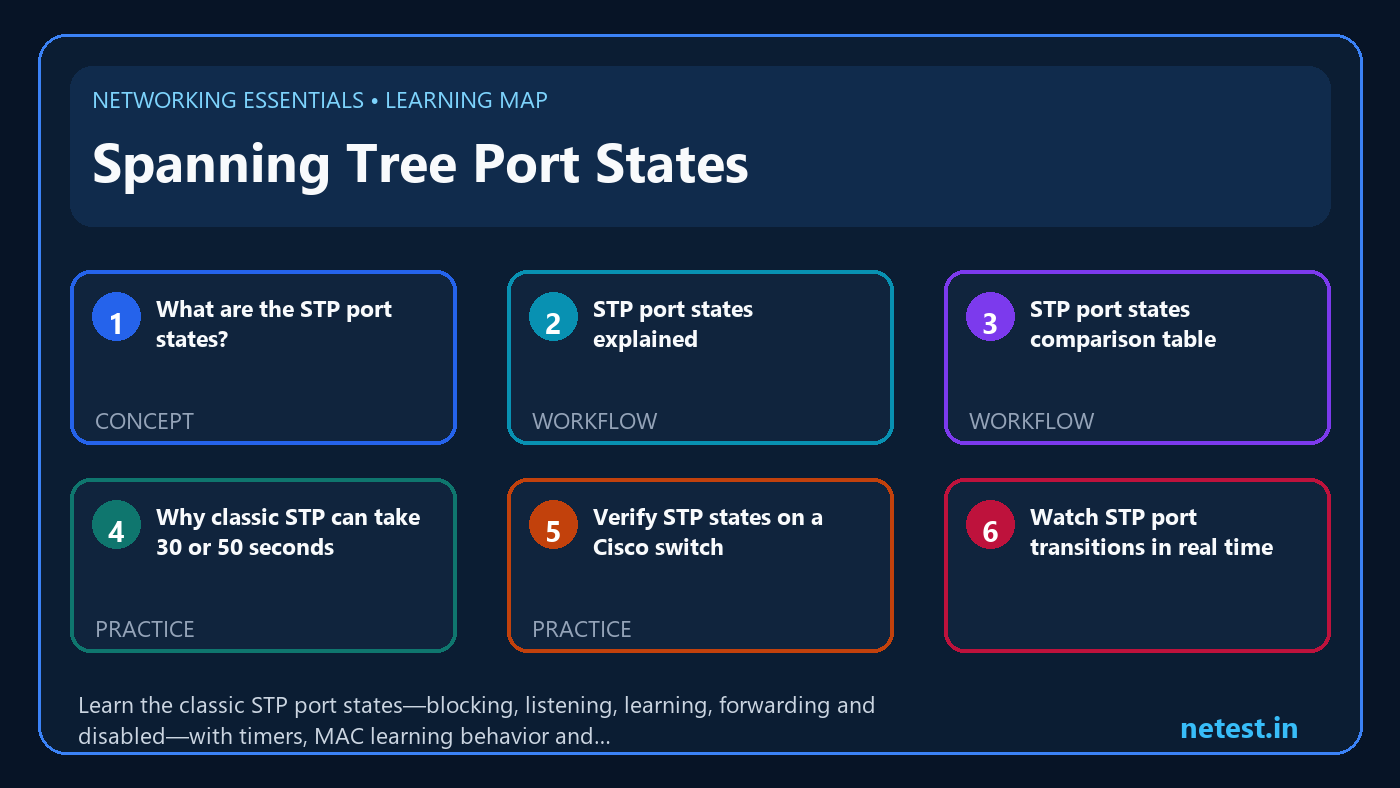

Quick Learning Map
Keep these three decisions in view as you work through the detailed lesson.
Identify the state
Determine whether the port is blocking, listening, learning, forwarding, or disabled.
Interpret behavior
Know whether BPDUs, MAC learning, and user frames are permitted.
Connect it to convergence
Use timers and topology events to explain why the state is changing.
STP Port States Explained: Blocking to Forwarding at a Glance
Use this summary to establish the big picture before moving into commands, examples, and troubleshooting.
Classic STP
Uses blocking, listening, learning, forwarding, and disabled states.
RSTP
Combines non-forwarding behavior into discarding for faster operation.
Troubleshooting clue
A state is meaningful only with the port role and root-path decision.
What are the STP port states?
The Spanning Tree Protocol determines whether a switch interface can forward user traffic by moving it through several port states. If you plug a cable into a Cisco switch and watch the interface LED change from orange to green, STP is checking the topology before allowing the port to forward frames.
STP port states explained
1. Blocking state
A blocked port does not forward user frames and does not learn source MAC addresses. It continues to receive and process BPDUs so it can detect a topology change.
- Prevents a redundant path from forming a Layer 2 loop
- Does not forward or flood user traffic
- Does not populate the MAC address table
- Can later transition toward forwarding
2. Listening state
A port selected as a root port or designated port enters listening. It participates in STP by processing BPDUs, but it still does not forward user frames or learn MAC addresses.
- Classic default Forward Delay: 15 seconds
- Confirms the active topology is stable
- Does not forward data frames
- Does not learn source MAC addresses
3. Learning state
The switch begins examining source MAC addresses and building its MAC address table. It still does not forward user frames, preventing data traffic from entering the topology too early.
- Classic default Forward Delay: 15 seconds
- Learns source MAC addresses
- Does not forward user data
- Prepares the port for forwarding
4. Forwarding state
The port is fully active. It forwards Ethernet frames, learns source MAC addresses and continues processing BPDUs to monitor the spanning-tree topology.
- Forwards user traffic
- Learns MAC addresses
- Processes BPDUs
- Acts as an active root or designated port
What about the disabled state?
A disabled port does not participate in frame forwarding or STP. The interface may be administratively shut down, physically disconnected or otherwise inactive. Disabled is one of the five classic STP states, but it is not part of the normal convergence path to forwarding.
STP port states comparison table
| State | Forward user frames? | Learn MAC addresses? | Process BPDUs? | Classic default duration |
|---|---|---|---|---|
| Disabled | No | No | No | Until enabled |
| Blocking | No | No | Yes | Depends on topology; up to Max Age in a failure scenario |
| Listening | No | No | Yes | 15 seconds |
| Learning | No | Yes | Yes | 15 seconds |
| Forwarding | Yes | Yes | Yes | Until topology or port status changes |
Why classic STP can take 30 or 50 seconds
Normal transition: 30 seconds
A newly selected root or designated port normally waits through two Forward Delay periods before carrying user traffic.
Total: 15 + 15 = 30 seconds before the port reaches forwarding.
Failure scenario: commonly cited worst case of 50 seconds
If a previously blocked port must replace a failed path and the change is detected by aging out old BPDU information, classic STP may wait for the default 20-second Max Age before beginning the listening and learning stages.
Worst-case example: 20 + 15 + 15 = 50 seconds.
Verify STP states on a Cisco switch
Use show spanning-tree vlan 1 after reconnecting an interface or performing a controlled shutdown and no shutdown. In the output, Role shows the port role and Sts shows its current state.
SW1# show spanning-tree vlan 1
Interface Role Sts Cost Prio.Nbr Type
------------------- ---- --- --------- -------- ----------------
Fa0/1 Desg LIS 19 128.4 P2pSW1# show spanning-tree vlan 1
Interface Role Sts Cost Prio.Nbr Type
------------------- ---- --- --------- -------- ----------------
Fa0/1 Desg LRN 19 128.4 P2pSW1# show spanning-tree vlan 1
Interface Role Sts Cost Prio.Nbr Type
------------------- ---- --- --------- -------- ----------------
Fa0/1 Desg FWD 19 128.4 P2pThe abbreviations are easy to remember: LIS = listening, LRN = learning and FWD = forwarding.
Watch STP port transitions in real time
In a controlled lab, event debugging shows each state transition as it happens:
SW1# debug spanning-tree events Spanning Tree event debugging is on 00:14:57: STP: VLAN0001 Fa0/1 -> listening 00:15:12: STP: VLAN0001 Fa0/1 -> learning 00:15:27: STP: VLAN0001 Fa0/1 -> forwarding
undebug all.Classic STP states vs RSTP states
The sequence above describes classic IEEE 802.1D STP. Rapid Spanning Tree Protocol uses three operational states and faster transition rules.
- Disabled
- Blocking
- Listening
- Learning
- Forwarding
- Discarding
- Learning
- Forwarding
RSTP combines the non-forwarding behavior of disabled, blocking and listening into discarding. Port roles and rapid proposal/agreement behavior help RSTP converge much faster than classic STP.
Spanning Tree Port States Frequently Asked Questions
What are the five STP port states?
Disabled, blocking, listening, learning and forwarding are the five classic IEEE 802.1D states.
Which STP states forward frames?
Only the forwarding state forwards user data frames. Listening and learning prevent forwarding while the topology stabilizes.
Which STP states learn MAC addresses?
Learning and forwarding learn source MAC addresses. Blocking and listening do not.
How long is the STP listening state?
The classic default is 15 seconds, controlled by the Forward Delay timer.
How long is the STP learning state?
The classic default is another 15 seconds, also controlled by Forward Delay.
Why is my switch port orange before turning green?
On many switches, an orange or amber LED indicates that STP is preventing forwarding while the port passes through its non-forwarding states. The exact LED meaning varies by switch model.
