Spanning Tree BPDU Guard

Q: What does BPDU Guard do?

BPDU Guard places a protected interface into the err-disabled state when it receives a spanning-tree BPDU, isolating the unexpected bridge or switch from the topology.

Q: Where should BPDU Guard be enabled?

It is normally enabled on verified endpoint-facing PortFast access ports where BPDUs are not expected. It should not be enabled blindly on normal switch-to-switch links.

Q: What is the difference between interface and global BPDU Guard?

The interface command enables BPDU Guard unconditionally on that interface. The global PortFast BPDU Guard default applies it to interfaces that operate as PortFast edge ports.

Q: Does BPDU Guard block a BPDU and keep the port forwarding?

No. On Cisco IOS, a protected port that receives a BPDU is placed into err-disabled state; user traffic on that port stops until recovery.

Q: How do you recover a port after a BPDU Guard event?

First remove or correct the device sending BPDUs. Then use shutdown followed by no shutdown, or use controlled errdisable recovery if it is intentionally configured.

Q: Should BPDU Guard be removed to recover the port?

Usually no. Fix the unexpected BPDU source first and keep the protection in place. Removing BPDU Guard without correcting the cause can expose the topology again.

BPDU Guard protects an endpoint-facing switch port from an unexpected bridge protocol data unit. If a protected port receives a BPDU, Cisco IOS places that interface into the err-disabled state before the attached device can influence the spanning-tree topology.

BPDU GuardSpanning TreePortFastErrdisableCisco IOS

What is Spanning Tree BPDU Guard?

Short answer: BPDU Guard is an STP safety control for ports where BPDUs should never arrive. One received BPDU causes the protected interface—not the entire switch—to enter err-disabled state.

Endpoint ports commonly connect to workstations, phones, printers, servers, or access points. If someone connects a switch, enables bridging on a host, or runs software that transmits a superior BPDU, the endpoint port can unexpectedly participate in STP. Without protection, that BPDU may trigger a root election and change forwarding paths.

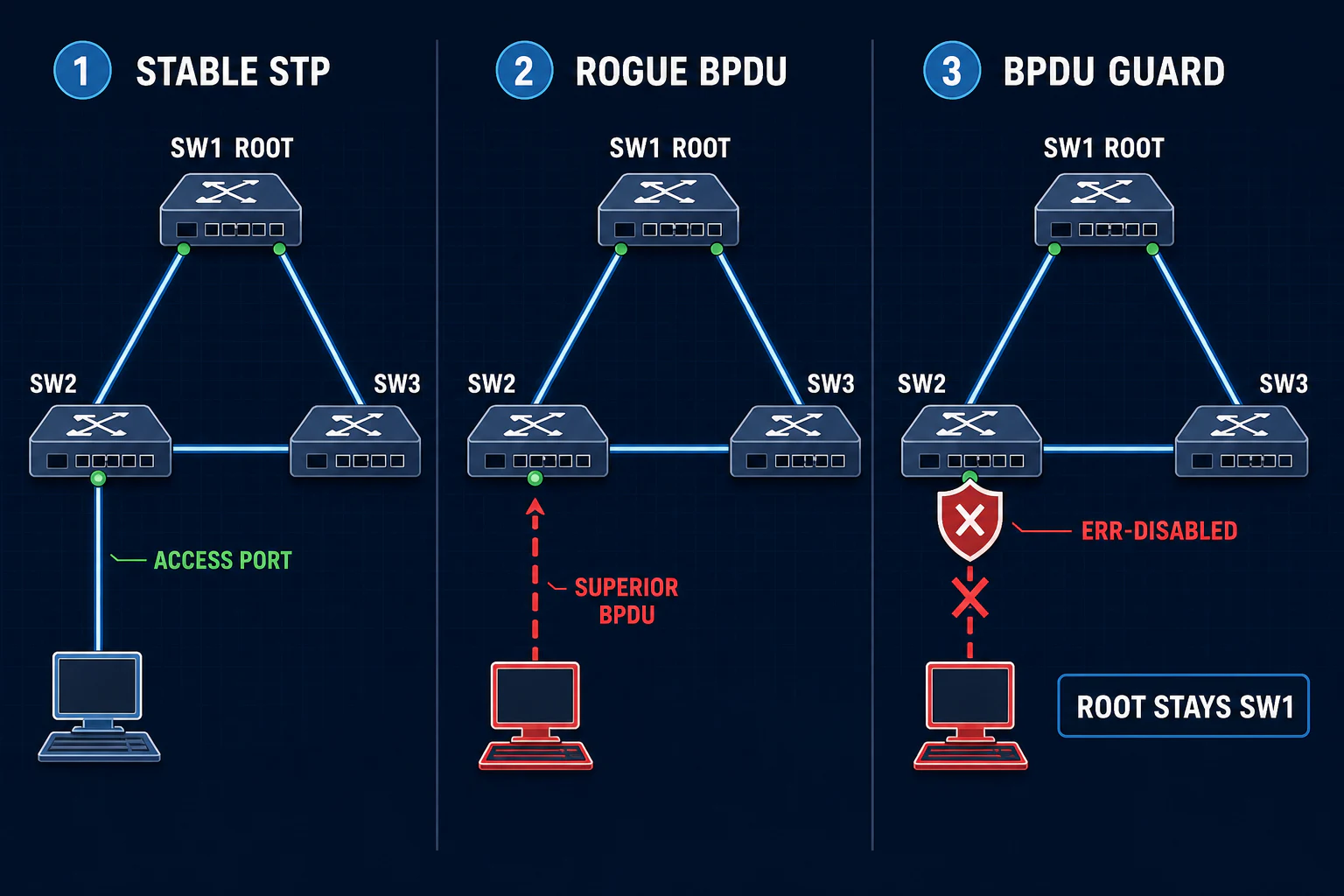

BPDU Guard workflow showing a stable triangular STP topology, a rogue endpoint sending a superior BPDU toward an access port, and BPDU Guard placing only that port into err-disabled state while SW1 remains root — A protected access port is isolated when it receives an unexpected BPDU, while the legitimate STP topology remains intact. Original educational diagram by Networking Essentials.

How a rogue BPDU can change the topology

The network starts stable. A legitimate distribution or core switch is the intended root bridge.
An endpoint-facing port receives a BPDU. This can come from an unauthorized switch, a software bridge, a hypervisor bridge, or a cabling mistake.
The advertised bridge ID is superior. A lower bridge ID can win the STP election if no protection prevents the device from participating.
STP reconverges. Root ports and blocked links may change, shifting traffic toward the unexpected device or a low-capacity access path.
The result can be disruption or interception risk. A malicious device that is deliberately placed in-path may observe or relay traffic; simply becoming root does not by itself guarantee interception of every frame.

Security nuance: a superior BPDU can manipulate the Layer 2 control plane, but a man-in-the-middle attack also requires the hostile device to be positioned so traffic actually traverses it. BPDU Guard prevents the first step on a protected edge port.

What happens when BPDU Guard triggers?

Without BPDU Guard

The interface can process the BPDU, and STP may recalculate the tree. The outcome depends on the received BPDU and the current topology.

With BPDU Guard

The switch detects a BPDU on the protected interface and moves that interface into err-disabled state. Traffic through the interface stops and the event is logged.

BPDU Guard does not operate like a packet filter. It reacts by disabling the port. That fail-closed behavior draws attention to an invalid edge connection and protects the rest of the topology.

BPDU Guard lab topology

Use SW2 FastEthernet0/16 as a host-facing access port. A normal endpoint does not transmit STP BPDUs. For a safe lab test, connect a spare switch to Fa0/16 and observe the port enter err-disabled state when the first BPDU arrives.

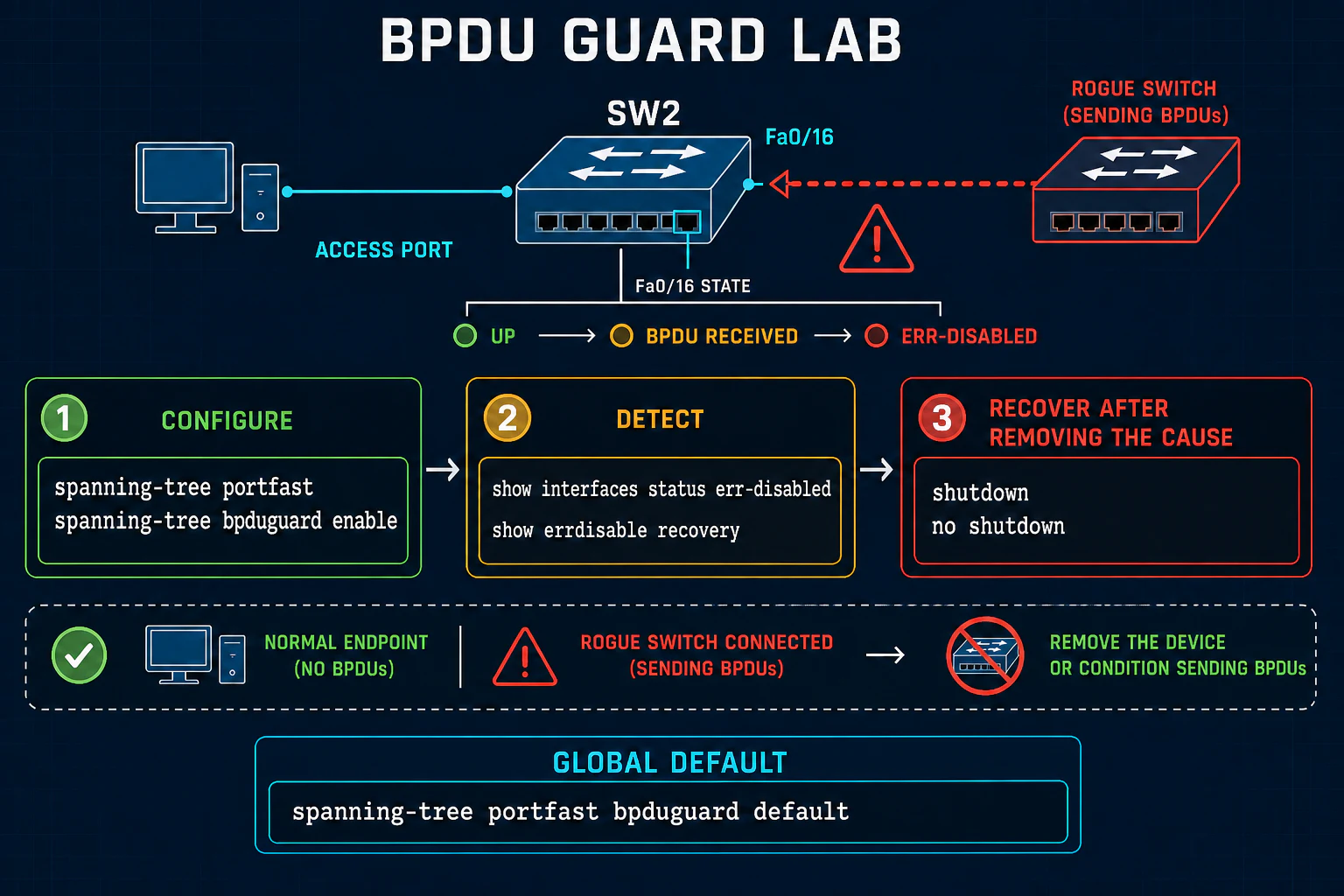

Cisco BPDU Guard lab showing SW2 FastEthernet0/16, a rogue switch sending BPDUs, interface and global configuration commands, verification commands, and safe recovery after removing the cause — Configure, detect, remove the unexpected BPDU source, and only then recover the access port. Original educational diagram by Networking Essentials.

Use a lab or maintenance window. Testing BPDU Guard intentionally disables the protected port and interrupts attached traffic.

Configure BPDU Guard on one interface

The interface-level command enables BPDU Guard directly on Fa0/16. Because this is an endpoint-facing access port, enable PortFast as well:

SW2# configure terminal
SW2(config)# interface FastEthernet0/16
SW2(config-if)# switchport mode access
SW2(config-if)# spanning-tree portfast
SW2(config-if)# spanning-tree bpduguard enable
SW2(config-if)# end

Do not apply this configuration to an ordinary switch-to-switch link. A legitimate neighboring switch sends BPDUs, so BPDU Guard would disable the link.

Enable BPDU Guard globally for PortFast ports

The global default is usually easier to operate consistently across many verified edge ports:

SW2(config)# spanning-tree portfast default
SW2(config)# spanning-tree portfast bpduguard default

spanning-tree portfast default enables PortFast by default on qualifying nontrunking ports. spanning-tree portfast bpduguard default applies BPDU Guard to interfaces operating as PortFast ports. Command spelling can include the edge keyword on newer IOS and IOS XE releases, so confirm the syntax supported by the target platform.

Recommended pattern: audit endpoint-facing ports, enable PortFast on those edge ports, and make BPDU Guard the default protection for the same operational PortFast set.

Verify BPDU Guard and the err-disabled event

SW2# show spanning-tree summary totals
Switch is in pvst mode
Portfast Default             is enabled
PortFast BPDU Guard Default  is enabled

SW2# show running-config interface FastEthernet0/16
SW2# show spanning-tree interface FastEthernet0/16 detail
SW2# show interfaces status err-disabled
SW2# show errdisable recovery

When a BPDU arrives, platform and software versions may format messages differently. A representative event looks like this:

%SPANTREE-2-BLOCK_BPDUGUARD: Received BPDU on port Fa0/16 with BPDU Guard enabled. Disabling port.
%PM-4-ERR_DISABLE: bpduguard error detected on Fa0/16, putting Fa0/16 in err-disable state

Confirm both the reason and the physical device connected to the interface. Do not treat a down link alone as proof that the source of the BPDU has been removed.

Recover safely from a BPDU Guard shutdown

Identify the interface and confirm bpduguard as the err-disable reason.
Trace the cable or endpoint and remove the unauthorized switch, software bridge, loop, or misconfiguration.
Verify that the interface is intended to be an endpoint-facing edge port.
Keep BPDU Guard enabled and manually reset the interface.
Monitor logs and STP state after the port returns.

SW2(config)# interface FastEthernet0/16
SW2(config-if)# shutdown
SW2(config-if)# no shutdown

Removing spanning-tree bpduguard enable is not the normal recovery step. That removes the safety control without correcting the reason it fired.

Optional automatic errdisable recovery

SW2(config)# errdisable recovery cause bpduguard
SW2(config)# errdisable recovery interval 400

Automatic recovery can be useful when policy allows it, but it can also create a repeated disable/re-enable cycle if the BPDU source remains connected. Use monitoring and an interval appropriate for the environment.

BPDU Guard vs BPDU Filter vs Root Guard

Feature	Normal placement	Reaction	Primary goal
BPDU Guard	Endpoint-facing PortFast/edge port	Err-disables the port when a BPDU arrives	Stop an unexpected bridge from joining STP
BPDU Filter	Special, carefully designed edge cases	Suppresses BPDU transmission or processing depending on configuration	Filter BPDUs; misuse can hide a loop
Root Guard	Designated ports toward switches that must never become root	Places the port into a root-inconsistent state after superior BPDUs	Enforce the intended root-bridge location

BPDU Guard best practices

Classify edge ports

Document which interfaces connect to single endpoints and which can lead to another Layer 2 bridge.

Pair with PortFast

Use the global PortFast BPDU Guard default to enforce the same policy across operational edge ports.

Alert on errdisable

Send syslog and monitoring alerts for BPDU Guard events so unexpected connections are investigated quickly.

Fix before recovery

Remove the BPDU source or cabling fault before returning the interface to service.

Audit exceptions

Record deliberate exceptions instead of disabling protection ad hoc during troubleshooting.

Test safely

Validate commands and recovery behavior in a lab that matches the production switch family and software train.

Spanning Tree BPDU Guard FAQs

What does BPDU Guard do?

It places a protected interface into err-disabled state when the port receives an STP BPDU, isolating the unexpected bridge or switch.

Where should BPDU Guard be enabled?

Normally on verified endpoint-facing PortFast access ports where no BPDU should arrive. Do not enable it blindly on normal switch links.

What is the difference between interface and global BPDU Guard?

The interface command enables the feature unconditionally on that interface. The global default applies it to interfaces operating as PortFast edge ports.

Does BPDU Guard block a BPDU and keep the port forwarding?

No. The protected port is placed into err-disabled state, which stops user traffic until the port is recovered.

How do you recover a port after a BPDU Guard event?

Remove or correct the device sending BPDUs first. Then reset the interface with shutdown and no shutdown, or use controlled errdisable recovery if policy permits.

Should BPDU Guard be removed to recover the port?

Usually no. Keep the safety control and fix the cause. Removing BPDU Guard can expose the topology to the same problem again.

Is BPDU Guard the same as BPDU Filter?

No. BPDU Guard shuts a protected port when a BPDU arrives. BPDU Filter suppresses BPDU handling and has different, more specialized use cases.
